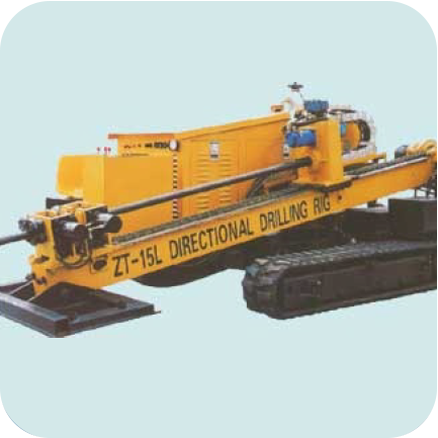

DIRECTIONAL DRILLING RIG

Model No.ZT15L

Product Description: ZT-15L Directional Drilling Rig adopts the high intensity rubber track chassis and all in one structure of power station and driller in order to be convenient for movement and raise flexibility .The motive is provided by the Cummins diesel engine,the motive is abundant,the function is settle.The rotary drive is driven by two motors for steady rotary and large torque.The feeding part adopts chaindriving mode to provide equal feeding and pulling power,can br use for long distance installation.Driller can use two hydraulic clamps for the making up and treaing away of drilling rods easily.Easy operation of all hydraulic drives and central control from the Control Pqnel.

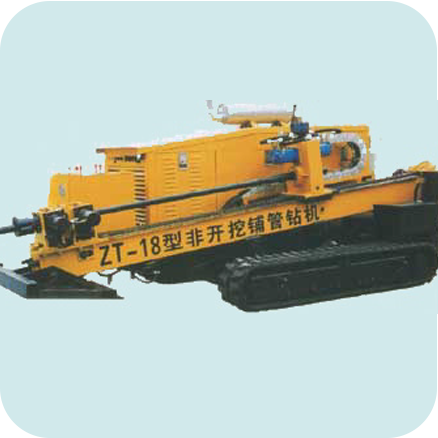

DIRECTIONAL DRILLING RIG

Model No.ZT18L

Product Description: ZT-60; Max Spindle torque:18000N.m; Spindle speed:0-50rpm,0-94rpm; Max.Pullback force:180kN; Max.Thrust force:180kN;

Product Function: ZT-60; Max Spindle torque:18000N.m; Spindle speed:0-50rpm,0-94rpm; Max.Pullback force:180kN; Max.Thrust force:180kN;

DIRECTIONAL DRILLING RIG

Model No.ZT60HHD

Product Description: ZT-60; Max Spindle torque: 26000 N. m; Spindle speed: 0 - 50 rpm, 0 - 94 rpm; Max.Pullback force:600kN; Max.Thrust force:600kN; Trust stroke: 6400mm; Diesel engine power: Cummins 239kw/2200rpm;ZT-60; Max.mud flow rate:500L/min×2; Max.fluid pressure:8Mpa;

Product Function: ZT-60; Max Spindle torque: 26000 N. m; Spindle speed: 0 - 50 rpm, 0 - 94 rpm; Max.Pullback force:600kN; Max.Thrust force:600kN; Trust stroke: 6400mm; Diesel engine power: Cummins 239kw/2200rpm;ZT-60; Max.mud flow rate:500L/min×2; Max.fluid pressure:8Mpa;

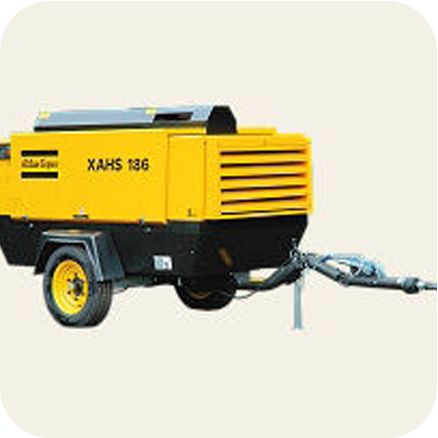

Recommended Compressor

This reliable & efficient rotary screw compressor, powered by a diesel engine, provides a maximum working pressure of 175 psi. The air output is filtered & conditioned to optimize the performance of our Tornado Fiber Blower. The maximum free air delivery is 370 cubic feet/minute. The unit is mounted on a two wheeled trailer with brakes and an adjustable towbar.

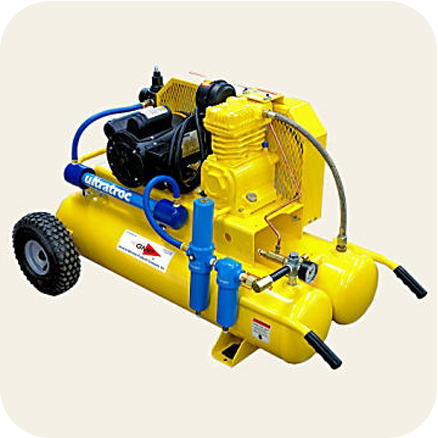

Blowing Air Compressor

This reliable & efficient air compressor, powered by 6 BT diesel engine, provides a maximum working pressure . The air output is filtered & conditioned to optimize the performance of our Tornado Fiber Blower. The maximum free air delivery is 3600 cubic feet/minute. The unit is mounted on a two wheeled trailer with brakes and an adjustable towbar
